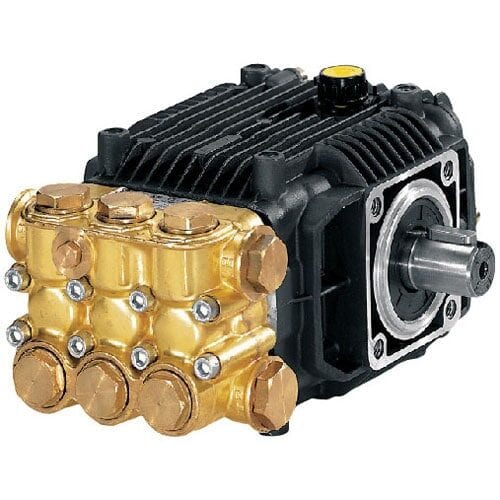

Annovi Reverberi AR XMV3G25 Pressure Pump for power washers.

AR XMV3G25 Pump

Name: AR XMV3G25 Pump
Brand: Annovi Reverberi
SKU: 41013-0065
Price: 535.19 EUR
Availability: InStock

SKU: 41013-0065 Categories: Power Washer Parts & Accessories, Power Washers, Pressure Pumps

€535.19€435.11~~€540.59€439.50~~SAVE €5.40SAVE €4.39

Price shown includes 23% VAT. - Excludes delivery costsPrice shown excludes 23% VAT. - Excludes delivery costs

Features

Forged brass manifold
3.0 gpm, 2500 psi max

DPD NationwideDelivery across IrelandClick & CollectFermoy, Co. Cork100% Secure CheckoutSafe & encrypted paymentIrish-Owned, Est. 1981Over 40 years trading

Description

Manifold: High strength forged brass for long term use.
Plungers: NEW Ceramic Plungers, thicker wall to help prevent thermal shock.
Valves: Stainless Steel, valve seat o-ring is side mounted.
Seals: High quality high pressure seals. NEW low-pressure seal with a built in scraper.
Piston Guides: Two piece guides.
Drive End: NEW connecting rid with 12% more load surface. Large side cover sight glass, oversized bearing. Rear cover oil drain.
Crankshaft: Forged, precision ground.

SPECIFICATIONS – XMV3G25

Maximum Volume
Max. Discharge Pressure
Max. Horsepower
Stroke
Maximum Fluid Temperature
Inlet Port Thread
Maximum Inlet Vaccuum
Maximum Inlet Pressure
Bore
Weight
Crankcase Oil Capacity
Discharge Port Thread

3.0 gpm
2500 psi
5.0 EBHP
7.6 mm
140°F
1/2 F
11.4 LMP
170 psi
15 mm
15 lbs.
14.6 oz
3/8 F

Additional information

Brand	Annovi Reverberi

Shipping Information

Standard Delivery: €15.00 exc VAT (€18.45 inc VAT) to the Republic of Ireland via DPD — basket weight up to 30 kg.
Pallet Delivery: €65.00 exc VAT (€79.95 inc VAT) — auto-applied at checkout when basket weight exceeds 30 kg.
Local Pickup: Free — collect from our store in Fermoy, Co. Cork, once you receive your collection email.

See our Delivery page for more details.

Returns Policy

We offer a 28-day return window on faulty or defective items. Products must be unused and in original packaging.

To initiate a return, please contact us at +353 25 32577 or email [email protected].

Note: Some items such as custom-ordered parts or opened consumables may not be eligible for return.

AR pumps have been a staple in the pressure washing industry since 1958. The Modena-based manufacturer makes everything from small diaphragm pumps for sprayers up to serious triplex plunger pumps. We’ve been fitting AR pumps to machines for years – they’re reliable and parts are readily available.

Why We Stock AR

Annovi Reverberi started out making agricultural pumps back in '58 and they've stuck to what they know. Their triplex pumps are workhorses - not the cheapest option but you're not replacing seals every few months either.

The RK and RKA series are popular with our commercial customers. Brass heads, ceramic plungers, proper oil bath crankcases. They also bought Ravel a few years back so they now make their own motors too.

What We Carry

We stock the most common AR pump models plus a full range of repair kits, valves, and seals. If you've got an older AR pump that needs parts, give us a ring - we can usually source what you need.
